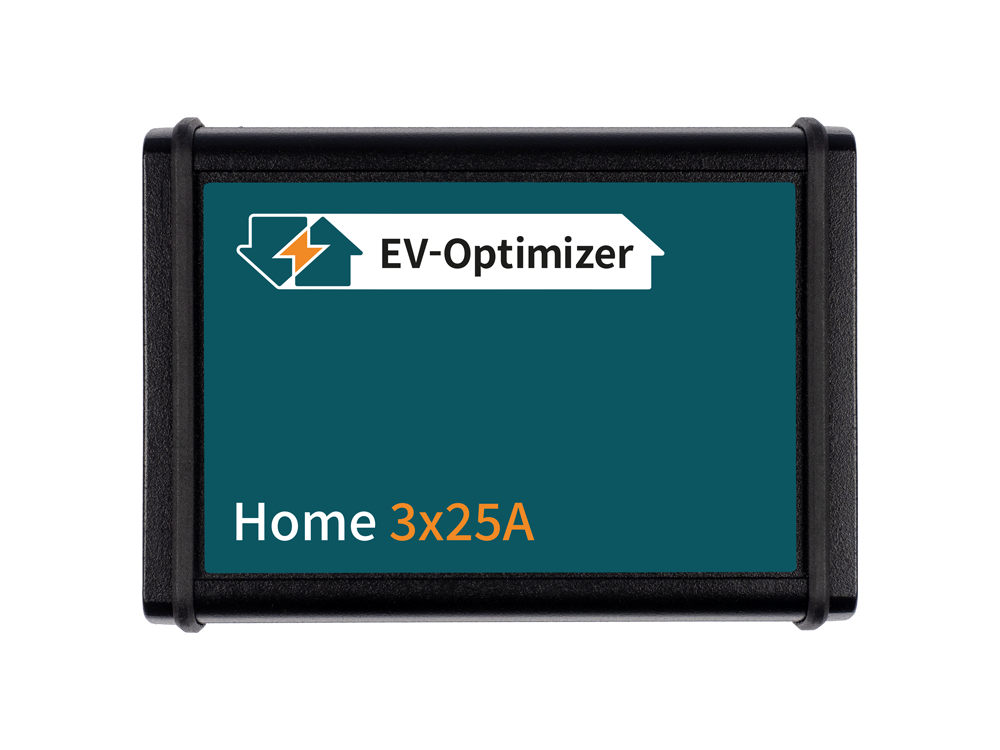

EV-Optimizer Home 3x25A
€425,00 excl. VAT
The EV-Optimizer Home Series 3x25A is suitable for grid connections up to 25A. The connection can be made to a ‘smart meter’ with P1 port (from SMR 4.0 to 5.0) with the option of being connected using smart measuring coils. The Home Series supports a maximum of one charging point. In addition, no external power supply is required when connected to the smart meter. All this without any subscription fees!
Technische specificaties
Mogelijkheden: 3x20A, 3x25A, 3x32A en 3x40A
Min. en max. temperatuur: -20° tot 60° C
Vochtbestendig: 95%
Behuizing: IP20
Aansluiting: Slimme meter via P1 poort
Afmetingen: 115 x 83 x 33 mm
Installatie eisen: NEN1010
Uitgang: RS485
Weergave status: Led verlichting
Communicatie protocol: EV-Box smartcharging protocol
Our products
Home 3x20A
Home 3x25A
Home 3x32A
Home 3x40A
Home 1x20A
Home 1x25A
Home 1x32A
Home 1x40A
Business 3x50A
Business 3x63A
Business 3x80A
The EV-Optimizer Business Series 3x80A is suitable for grid connection up to a maximum of 80A.
Business 1x50A
The EV-Optimizer Business Series 1x50A is suitable for grid connection up to a maximum of 50A.
Business 1x63A
The EV-Optimizer Business Series 1x63A is suitable for grid connection up to a maximum of 63A.
High Current 100A t/m 1000A
The EV-Optimizer High Current 100A up to 1000A is suitable for grid connection up to a maximum of 1000A.
High Current Custom
The EV-Optimizer High Current Custom is suitable for grid connection up to a maximum of 2500A.
